Product news

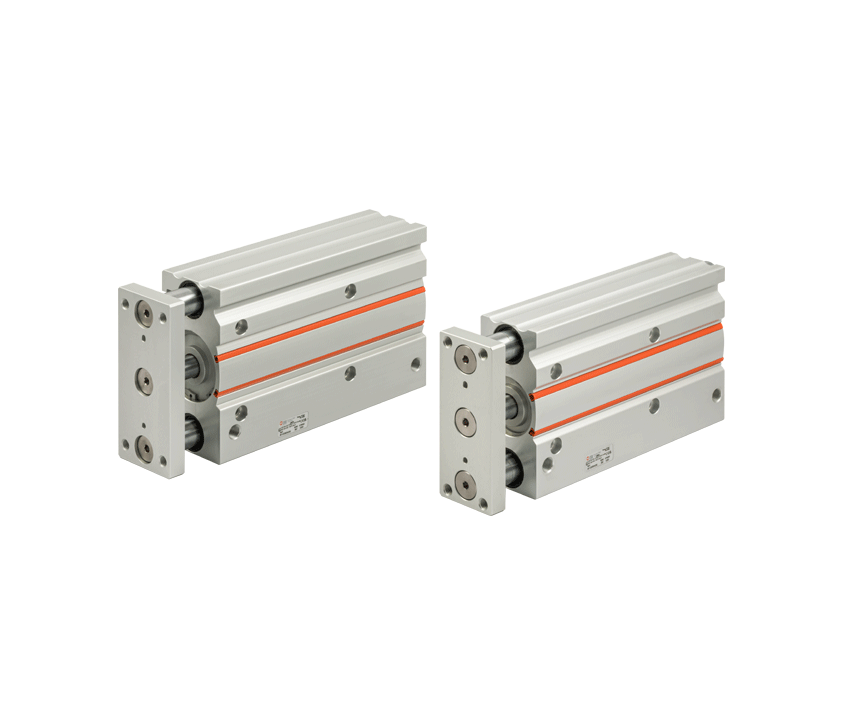

Compact guided cylinders Series Multifix ø50 and ø63

Range widening: Compact guided cylinders Series Multifix ø50 and ø63

The Multifix Series expands with the introduction of the ø50 and ø63 sizes in order to complete the offered range. The new sizes maintain all the features of the Multifix Series, thus being designed to allow the fixing on multiple sides using different methods, compressed air supply on both sides, double sensor slots, on both the upper and lower side.

The body obtained from anodized extrusion allows an optimization of the section with considerable lightening compared to other Series.

You can choose the version with piston rods made of ground chromed carbon steel guided by sintered bronze bushings or the version with hardened, chromed and ground steel rods guided by recirculating ball bushings. In both cases, both the silenced version with elastic end-stroke elements and the version with pneumatic cushioning having adjustable pins to control the braking are available.

All versions are supplied with a maximum stroke of 400 mm.

See product catalog Buy online
